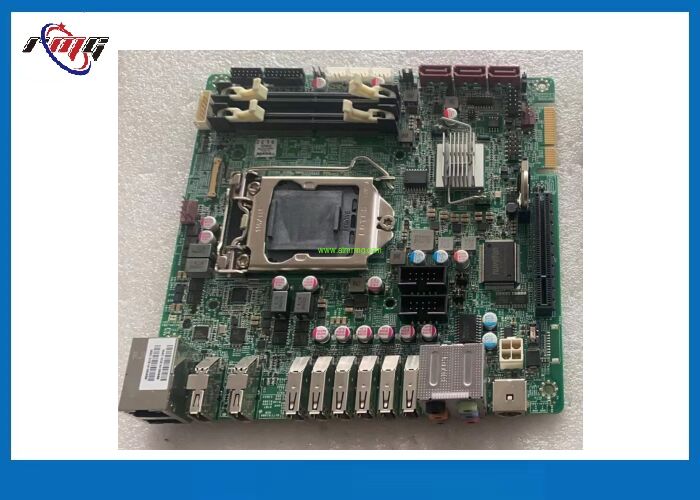

NCR S2 Misano Mainboard (4450770712 / 445-0770712)

Core Functions

1. Central Processing & System Control

• Brain of the ATM: Houses the main CPU (typically Intel Skylake i5-6500TE or equivalent) to execute all ATM software, operating systems, and transaction logic.
• System Management: Controls boot-up, power management, and real-time operation of all connected ATM components (dispensers, card readers, printers, displays).

2. Transaction Processing & Financial Operations

• Secure Transaction Execution: Manages core banking functions:
  • Cash withdrawals, deposits, and transfers
  • Balance inquiries, account authentication, and PIN verification
  • Receipt printing, card reading, and user interface interaction

• Data Integrity: Ensures accurate and secure handling of sensitive financial data, compliant with banking security standards.

3. Hardware Integration & Connectivity

• Component Interfacing: Acts as the main communication bridge between:
  • Peripherals: Card readers, cash dispensers, receipt printers, touchscreens, and sensors.
  • Network: Ethernet port for secure connection to banking servers and networks.
  • I/O Ports: Multiple USB, serial, and audio ports for device expansion and maintenance.

• Compatibility: Fully integrated with NCR S2 ATM architecture, ensuring seamless hardware/software synergy.

4. Security & Compliance

• TPM 2.0 (Trusted Platform Module): Built-in hardware security for encrypted data storage, secure boot, and anti-fraud protection.
• Fraud Prevention: Supports anti-skimming, card data encryption, and secure PIN handling to meet global banking security regulations.

5. Reliability & Industrial-Grade Performance

• 24/7 Operation: Engineered for continuous, high-stress use in banking environments (retail branches, ATMs, kiosks).
• Stability: Optimized for minimal downtime, ensuring consistent performance during peak transaction hours.
• Maintenance: Facilitates diagnostic, repair, and software updates via built-in service interfaces.

Key Specifications

• Model: NCR S2 Misano Mainboard (445-0770712)
• CPU: Intel Skylake i5-6500TE (2.30 GHz)
• Memory: 8GB DDR4 (standard)
• Security: TPM 2.0, hardware encryption
• Interfaces: Ethernet, USB 2.0/3.0, SATA, serial, audio
• Form Factor: Compact industrial ATX for NCR S2 ATM chassis
