Detail Information
Place of Origin:
China
Brand Name:
Hyosung
Certification:
ISO
Model Number:
2700 FDK
Installation:
Easy To Install With Standard Tools
Interface Type:
USB And Optional Internet Interface
Industry Expeiences:
23 Years
Style:
New Original
Conditional:
New Original
Port:
Guangdong
Part Number:
A007488
Shape:
Rectangular
Use:
Card Printer
Lead Time:
3-7 Days
Production Ability:
10000 Pcs / Month
Status:
In Stock
Support:
Technical Support Available
Business Type:
Factory
Condition:
Refurbish
Highlight:

High Light

Highlight:

Hyosung 2700 FDK ATM cable

,

ATM spare parts FDK cable

,

Hyosung FDK cable replacement

Trading Information
Minimum Order Quantity:
1pcs
Price:
By quotation
Packaging Details:
Carton
Delivery Time:
5-8working dasy
Payment Terms:
T/T,
Supply Ability:
1000pcs per month
Product Description

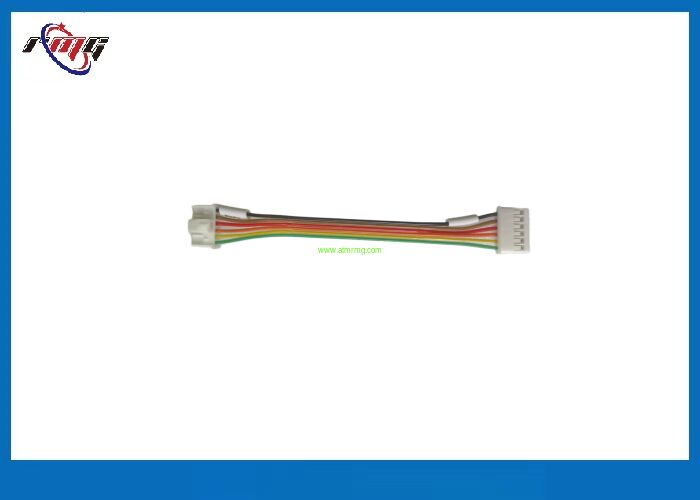

The Hyosung 2700 FDK cable (Function Display Key cable) is a specialized internal data harness used to connect the side function keys to the ATM's main control board. In the Nautilus Hyosung 2700 series, these keys are the tactile buttons located on either side of the 10.1" or 10.2" LCD screen that allow users to select on-screen menu options.

Key Specifications and Description
  • Function: Transmits input signals from the function keypads (FDKs) to the Main Control Board (MCB) for processing.
  • Configuration: It typically consists of a multi-pin ribbon or flat cable assembly designed to fit the specific pin headers on the Hyosung 2700 mainboard
  • Compatibility: While specifically designed for the NH-2700 and 2700CE models, similar FDK cables are often used across related Hyosung models like the Halo or 1800 series, though pinouts may vary.
  • Variants: Replacement parts are often sold as specific Left Function Key Cables or Right Function Key Cables, as the lengths and routing requirements differ depending on which side of the bezel they serve.

Hyosung 2700 FDK cable

 Hyosung 2700 FDK cable

Hyosung 2700 FDK cable
